Multi-Functional Exchangeable Heads for Keyway Machining

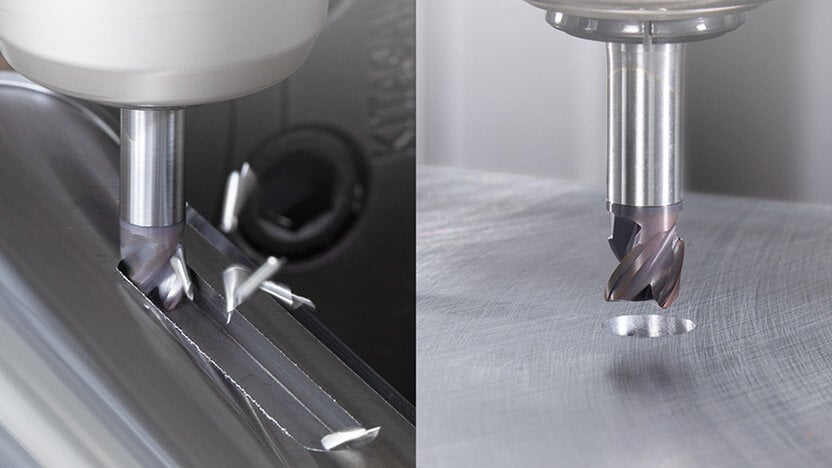

The expanded TungMeister system introduces new exchangeable end-mill heads designed to combine drilling, ramping, and side milling while improving process stability in keyway and pocket machining for metalworking applications.

Addressing Machining Constraints in Keyway and Pocket Operations
Keyway and pocket machining is commonly performed using solid end mills, which typically lack effective drilling capability. To compensate, operators rely on ramping or helical interpolation, increasing tool engagement time and complicating chip evacuation. These conditions frequently lead to chip congestion and self-excited vibration, requiring conservative cutting parameters that limit productivity. As manufacturing environments place greater emphasis on cycle-time reduction and process reliability, tools that support stable, high-efficiency machining under these conditions have become increasingly relevant.

System Architecture and Tool Design
TungMeister is an exchangeable-head end-mill platform with more than 45 available head geometries and multiple shank material options. The system separates the cutting head from the shank, allowing worn heads to be replaced without removing the toolholder from the machine spindle. This approach reduces setup time while maintaining repeatable runout and positioning accuracy, which is critical for precision slotting and pocketing operations.

Multi-Functional Machining Capability
The newly introduced heads are designed to support drilling, ramping, and side milling with a single tool assembly. By enabling multiple machining steps without tool changes, the system reduces non-cutting time and toolpath length. Optimized cutting geometry supports consistent engagement during transitions between axial and radial cutting, contributing to stable dimensional accuracy and uniform surface finish in keyways and closed pockets.

Vibration Suppression through Unequal Lead Geometry
An unequal lead design is applied to the cutting edges to disrupt the harmonic buildup associated with regular tooth spacing. By dispersing vibration frequencies during cutting, the tool reduces the likelihood of chatter in both drilling and side-milling operations. Lower vibration levels translate into improved surface integrity and allow machining at higher feed rates without compromising accuracy.

Chip Evacuation and Thermal Stability
The exchangeable heads incorporate enlarged chip pockets to facilitate rapid chip flow away from the cutting zone. Efficient evacuation reduces the risk of chip recutting and clogging, particularly in deep pockets and continuous cuts. Stable chip flow also helps moderate cutting temperatures, which contributes to consistent cutting forces and extended tool life during prolonged machining cycles.

Application Scope
The expanded TungMeister configuration is intended for use in general machining environments where keyway and pocket operations are performed on a range of metallic materials. By integrating multi-functional cutting capability with vibration control and chip management, the system targets applications requiring a balance of productivity, precision, and operational stability.
