Horizontal Boring Machining Center For Deep Hole Applications

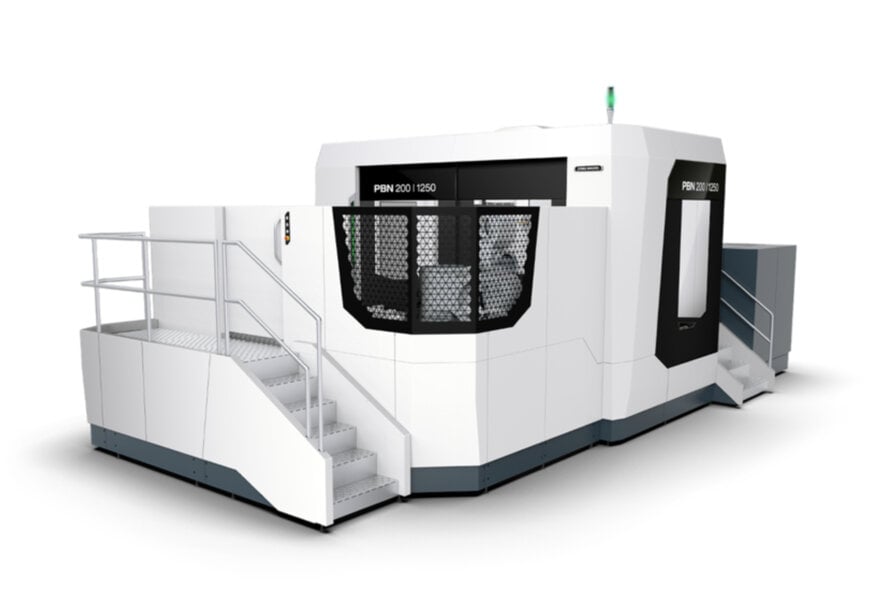

High-rigidity heavy-duty machining and deep-hole drilling in sectors such as aerospace, semiconductor manufacturing, and construction machinery require equipment capable of maintaining extreme precision at maximum extension. To address these industrial requirements, DMG MORI Precision Boring Co., Ltd. has launched the PBN 200 | 1250, a horizontal boring machining center featuring enhanced spindle speeds, W-axis capabilities, and automated sludge management systems.

Engineering Challenge And Spindle Technology

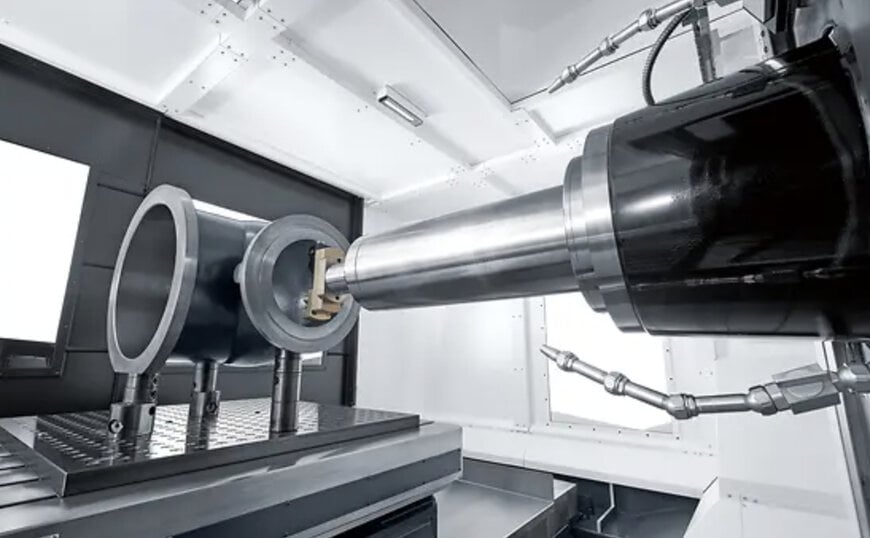

Continuous valve machining and deep-hole operations often face physical interference issues when relying solely on Z-axis travel for large workpieces. The PBN 200 | 1250 mitigates this limitation by integrating a W-axis extension supported by a 200-millimeter quill-type boringMASTER spindle. This architecture allows powerful machining deep inside large structures while avoiding collisions. The spindle operates at 400 volts, delivering up to 80 kilowatts of output at 10 percent ED, representing a 45 percent increase over predecessor models. With a standard spindle speed of 10,000 revolutions per minute and rapid feed rates across X, Y, and Z axes improved from 16 to 25 meters per minute, the system significantly reduces operational cycle times.

Structural Rigidity And Material Removal Capabilities
Structural stability is critical during heavy-duty cutting operations to prevent vibration and ensure surface quality. The machine frame incorporates a bed sliding guideway expanded by 100 millimeters and a column sliding guideway widened by 200 millimeters. An overall casting mass increase of five percent further maximizes structural rigidity for heavy-duty cutting. These physical enhancements directly translate to increased cutting performance, enabling a 40 percent increase in material removal rates for carbon steel (S50C) and a 20 percent increase for high-speed aluminum (A5052) cutting. To accommodate varied production scales, the machine supports larger pallet configurations of 1,450 by 1,450 millimeters and 1,650 by 1,650 millimeters.

Automation And Coolant Management Solutions
Automated, long-term continuous operation is frequently bottlenecked by three major obstacles: chip accumulation, dust, and coolant degradation. To resolve these barriers to unmanned production, the PBN 200 | 1250 features a full enclosure that prevents the dispersion of chips, dust, and mist, improving overall workplace safety. The standard zero-sludge coolant tank actively agitates the coolant and utilizes a high-precision filter to collect fine sludge efficiently. For advanced mist extraction within the machining envelope, the system can integrate an optional built-in zeroFOG mist collector, as well as an optional zero-sludgeCOOLANT pro with an innovative vertical tank design. A standard two-pallet automatic pallet changer reliably exchanges workpieces weighing up to 4,000 kilograms, with optional expansion to four or six pallets via the Compact Pallet Pool system to match specific production volumes.

Operator Interface And Tool Handling
Reducing operator workload during complex setups is achieved through the ERGOline X control panel featuring the CELOS X human-machine interface, which combines a large touchscreen with ergonomically arranged hardware buttons. The system includes a rich lineup of Technology Cycles to accelerate the setup of complex machining operations. The standard Tool Loading Unit ensures the safe and automatic handling of large-diameter and heavy tools, while a dedicated magazine operation panel allows technicians to execute all tool setup procedures directly at the magazine for maximum efficiency.

Industrial Deployment And Demonstration
The PBN 200 | 1250 is designed for sustainable manufacturing and stable long-term operation. Visitors can observe live machining demonstrations of the equipment in small groups during the monthly PB Technology Day Open House at the DMG MORI headquarters and factory in Nagaoka City, Niigata Prefecture.




Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

The integration of advanced W-axis quill spindles remains a critical benchmark in the horizontal boring mill sector, allowing manufacturers to maintain high cutting forces at extended reaches without compromising geometric tolerances. Comparable large-scale horizontal machining centers from manufacturers such as Shibaura Machine and DN Solutions similarly prioritize extreme structural rigidity and multi-pallet automation to minimize non-cutting time in heavy industries. As aerospace and semiconductor components increase in complexity and scale, the integration of autonomous sludge and mist management systems has become an industry standard. These fluid management technologies directly extend unmanned operating hours and protect delicate linear guideways from abrasive particulate wear, fundamentally reducing the total cost of ownership in high-throughput production environments.

Edited by Maria Brueva, Induportals editor – adapted by AI.
