Advanced 5-Axis CNC Machining And Universal Turning

Modern manufacturing requires high flexibility and precision to produce complex components in smaller batch sizes cost-effectively. To address these industrial demands, DMG MORI offers a comprehensive portfolio of universal turning and 5-axis machining centers that consolidate multiple manufacturing processes into a single setup.

Universal Turning And Milling Capabilities

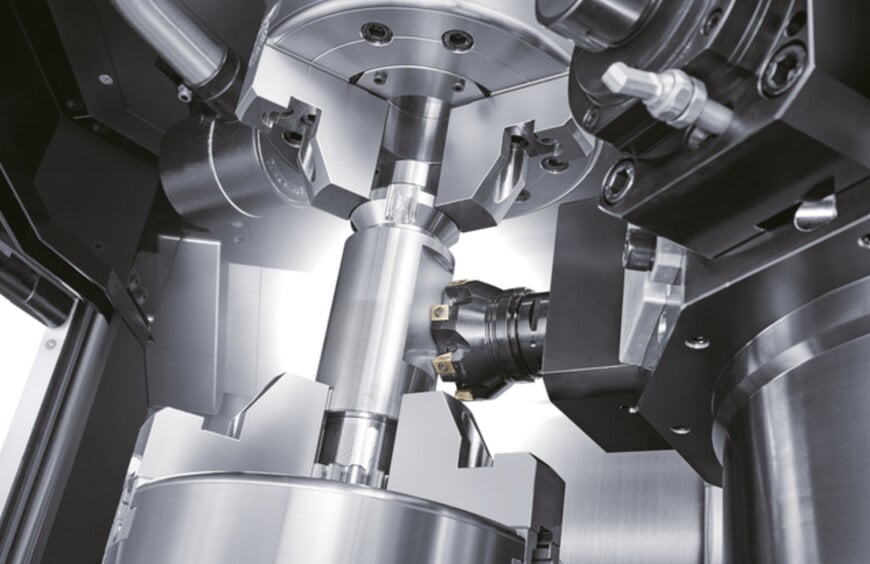

Despite the evolution of automated manufacturing, universal turning remains a critical technology for producing rotationally symmetric and milled workpieces. Machine shops require reliable turning centers, such as the CLX 350 and CLX 450 from the DMG MORI BX portfolio, which feature counter-spindles, Y-axes, and powered tools to machine complex workpieces on all six sides within one working space. For applications demanding higher precision, the CTX and NLX series provide application-specific solutions. The NLX 2500 second generation includes a direct-drive turret operating at 12,000 rpm, delivering advanced milling capabilities that are also available as an option on CTX models. These systems support fully digitized manufacturing through the CELOS X control platform and various technology cycles, with provisions for retrofitting automation.

5-Axis Machining And Single Setup Production

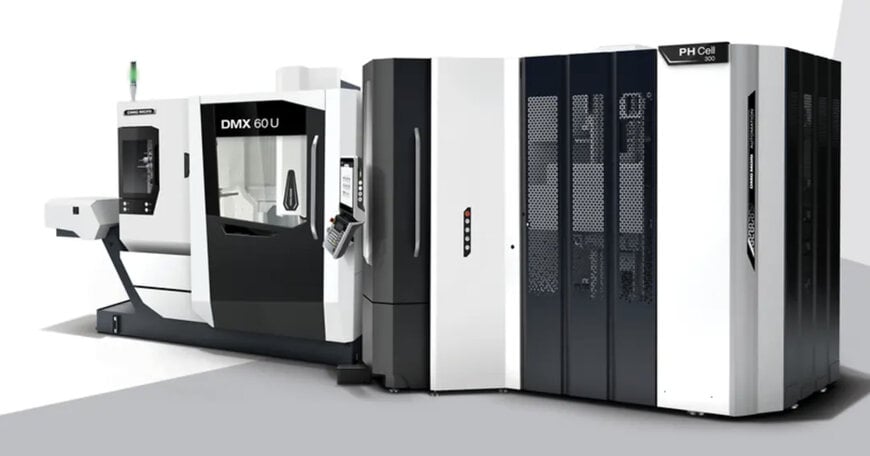

Conventional 3-axis milling often requires multiple setups for intricate designs, increasing production time and the risk of geometric inaccuracies. Simultaneous 5-axis machining provides a significant advantage by allowing designers to consolidate entire assemblies into single components manufactured in one operation, excluding necessary rear-side machining. Drawing on expertise from the aerospace and semiconductor industries, DMG MORI provides a broad range of 5-axis machines capable of producing free-form surfaces with high precision for sectors like mold making. The portfolio ranges from the compact DMX 60 U in the BX series to high-end precision models like the DMU 20 linear and the DMU monoBLOCK and duoBLOCK series, extending up to the DMU 340 P gantry machine for XXL large-scale component machining.

Process Integration And CNC Operator Training
Achieving maximum process integration requires combining turning and 5-axis milling within a single workspace. Machining centers equipped with mill-turn tables, such as the DMU 125 duoBLOCK FDS, or turn-mill centers from the CTX TC series, represent the pinnacle of CNC process consolidation. These machines can execute grinding operations and gear-cutting tasks utilizing specific technology cycles. As these manufacturing solutions become more sophisticated, safe and efficient utilization requires specialized operator knowledge. The DMG MORI Academy supports this transition by providing targeted vocational training programs, customized educational packages for training workshops, and commissioning support for experienced specialists to accelerate the production ramp-up phase in daily operations.




Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

The shift toward process integration in CNC machining is driven by the industrial requirement to reduce work-in-progress inventory and eliminate clamping errors associated with moving parts between discrete turning and milling machines. In the highly competitive landscape of multi-tasking machine tools, manufacturers such as Mazak and Okuma similarly prioritize high-torque mill-turn spindles and advanced control platforms to streamline complex part programming. The integration of high-speed 12,000 rpm direct-drive turrets allows operators to achieve surface finishes and material removal rates comparable to dedicated milling centers. This capability establishes a critical benchmark for hybrid machining operations in the aerospace and precision engineering sectors, where minimizing non-cutting time and maintaining strict geometric tolerances are essential for operational profitability.

Edited by Maria Brueva, Induportals editor – adapted by AI.
