Automated Punching Machine For Sheet Metal Processing

TRUMPF has introduced the next generation of its TruPunch 5000 punching machine to advance automated sheet metal processing. The system integrates intelligent camera monitoring, artificial intelligence, and modular material handling to support high-volume manufacturing in the energy and electronics sectors.

Addressing the Industrial Challenge
Sheet metal manufacturers require highly automated systems to manage high-volume production without compromising process stability. Traditional punching setups often suffer from extended non-productive times due to manual sorting, physical monitoring, and complex material flow bottlenecks between punching and bending stations. Operating these machines continuously requires remote diagnostic capabilities to prevent unplanned downtime and reduce the reliance on localized personnel during extended shifts.

Technical Architecture and Responsibilities

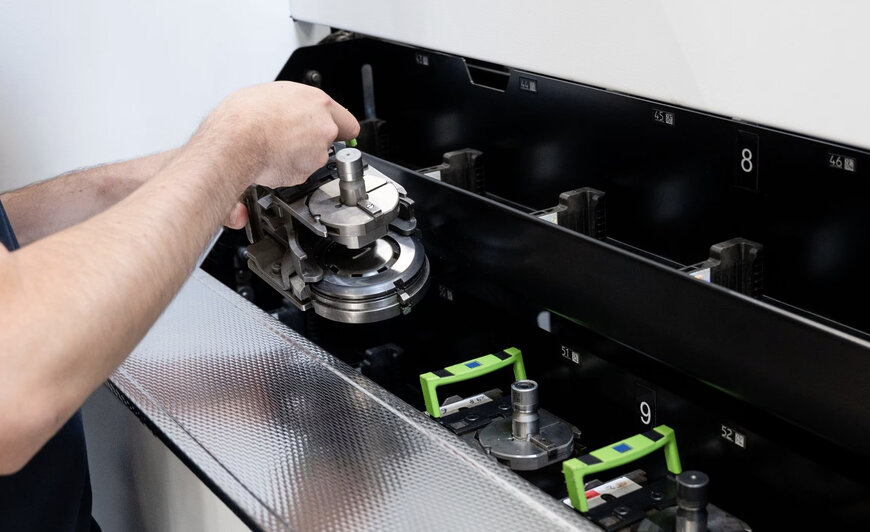

The TruPunch 5000 operates with a punching force of 22 tons and processes sheet metal up to eight millimeters thick at a rate of 1,600 strokes per minute. The system features an active die designed to produce low-scratch surfaces, accommodate larger forming heights, and ensure process reliability during demanding punching and forming applications. TRUMPF equipped the machine with the Vision Equipment Pro camera system, utilizing up to ten integrated cameras to monitor the workspace. The technical architecture includes the ToolMaster Linear tool changer, which features a dedicated display at the setup station to streamline tooling data access and improve setup security.

Deployment and Operational Integration

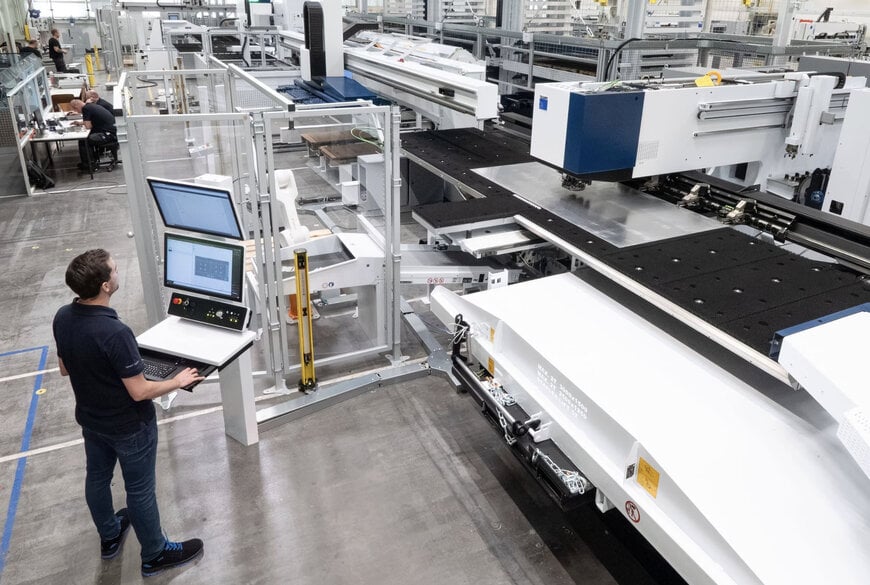

The machine architecture is designed for integration into directly linked manufacturing environments. The system utilizes a SheetMaster automation unit to transfer punched components onto a buffer conveyor belt, which subsequently feeds a TruBend Center 7030 bending cell. This flexible material flow allows operators to route components back to storage or transfer them to mobile robots based on capacity. An integrated buffer storage mechanism balances the different processing speeds of the punching and bending machines to maintain continuous machine utilization. The system transmits process data to the TRUMPF Smart View digital service for remote dashboard monitoring, while a second physical screen displays manufacturing information and data from the TRUMPF Oseon software.

Applications and Use Cases
The punching system is deployed in the electronics and energy industries for the production of components ranging from control cabinets and data center enclosures to intricate functional parts. The integration of AI-supported optical recognition allows robotic arms to identify the orientation of small parts and sort them automatically without requiring manual programming inputs.




Results and Expected Impact
Implementing the TruPunch 5000 allows facilities to reduce non-productive times through improved safety layouts, shorter operator walking distances, and automated part sorting. Remote monitoring and over-the-air machine updates eliminate the immediate need for on-site service technicians, enabling continuous overnight production. Michael Steimle, Product Manager at TRUMPF, noted that with the new system, the company supports customers in manufacturing high volumes economically and automatically. The open frame design ensures continuous accessibility even when deployed within highly automated production lines, providing a scalable foundation for future manufacturing automation.
