Precision Fine Boring for Small Diameters in High-Volume Manufacturing

MAPAL has developed a single-screw adjustment architecture for finish machining bores between 10 and 19 mm in diameter, addressing cycle time and setup complexity in high-precision automotive, powertrain, and general mechanical engineering sectors. The tooling configuration adapts established large-diameter cartridge principles to tight internal clearances where manual adjustment traditionally required dual-screw calibration.

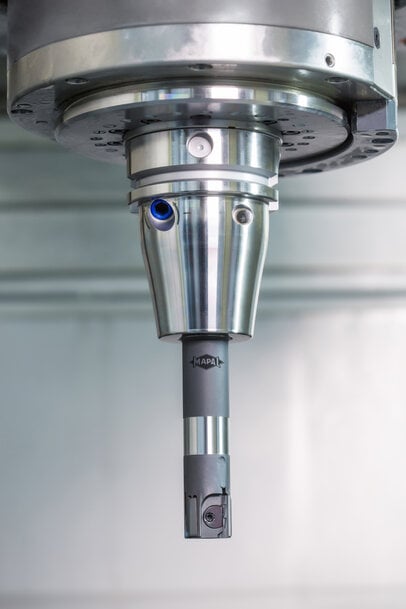

Single-Screw Calibration Architecture for Compact Bore Geometries
Traditional fine boring tools rely on separate adjustment screws to set cutting-edge diameter and cutting-edge back taper independently. While this standard dual-element layout achieves tight dimensional tolerances, calibration demands extensive operator expertise and repeated measurement cycles on external presetting devices. The EasyAdjust-System eliminated manual taper setting for diameters from 20 mm upward by incorporating a fixed back taper directly into a replaceable cartridge, leaving only diameter adjustment to the operator. In 2026, engineering constraints related to tool body mass, pocket stiffness, and clamping space were resolved to transfer this single-screw method to the 10 to 19 mm range.

Insert Seating Mechanics and Clamping Stability
Scaling single-point setting down to small inner dimensions requires precise coordination between insert seat geometry and retention forces. The tool design integrates a dedicated indexable insert featuring a defined contact face that interfaces directly with a matching clamping jaw. This geometry creates a positive-locking interface that directs tool-setting displacement strictly along the calibrated radial axis. Under dynamic cutting loads, the clamping system maintains rigid fixation, eliminating positional creep and preserving back taper orientation across varied workpiece materials.

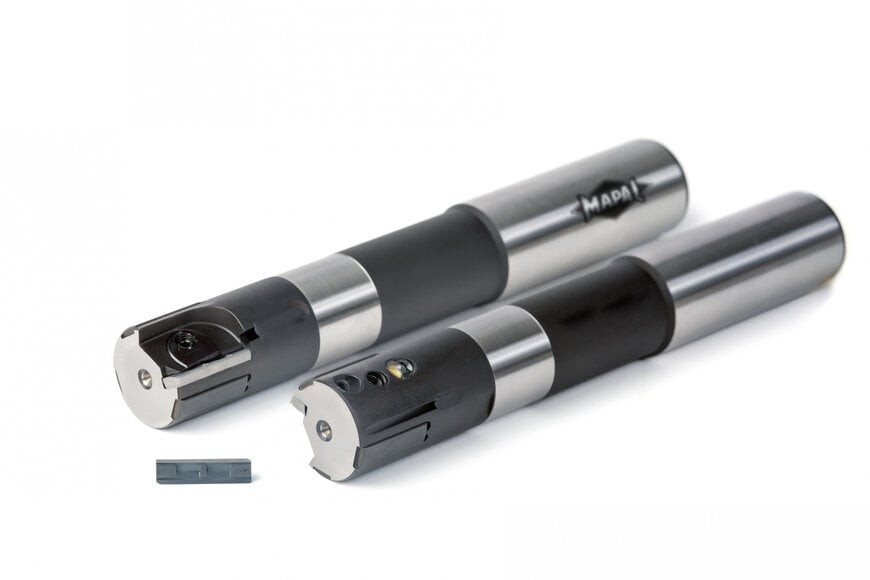

Precision on the component: The EA-Performance-System enables micrometre-precise fine boring with high process reliability, making it ideal for demanding fit and bearing bores in the diameter range from 10 to 19 mm.  ©MAPAL

Application Parameters and Quality Control in Serial Machining
The system targets high-precision bore profiles that mandate strict roundness, cylindricity, and surface finish, such as bearing seats and precision fits in transmission housings, engine cylinders, crankshafts, and camshafts. Micrometre-level adjustment through a single drive element reduces presetting downtime and eliminates setup-induced geometric errors. Serial production trials at early industrial deployment sites indicate lower component scrap rates and consistent dimensional repeatability across high-volume production batches.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

Fine boring within the 10 to 19 mm diameter envelope is widely served by micro-adjustable modular heads from manufacturers such as Wohlhaupter and Big Kaiser. Conventional solutions in this class, such as the Wohlhaupter Balance digital boring heads or Big Kaiser EWN Series, typically adjust diameter via a vernier dial or digital readout mechanism actuating a slide carrier, requiring independent manual verification of the cutting angle or reliance on standard ISO insert pockets. The single-screw design from MAPAL distinguishes itself by integrating a fixed back taper directly into the clamping seat mechanics, prioritizing rapid mechanical presetting without secondary adjustment points.
